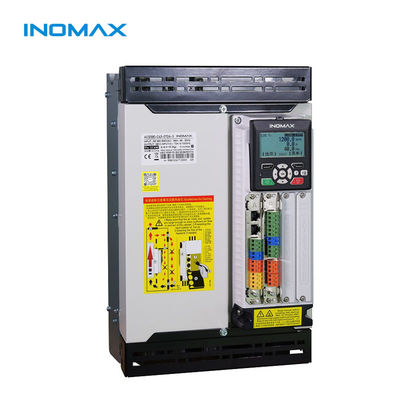

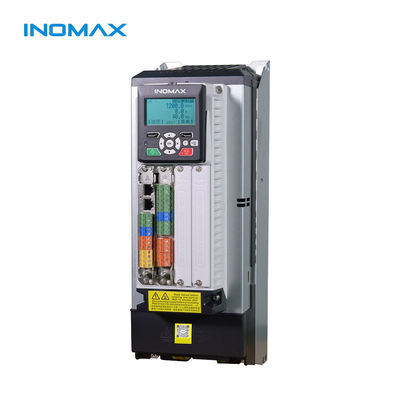

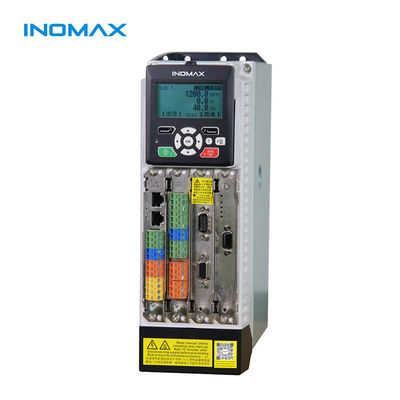

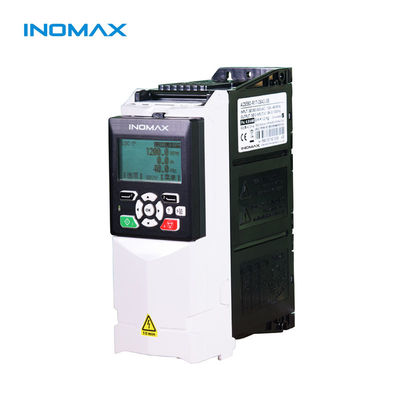

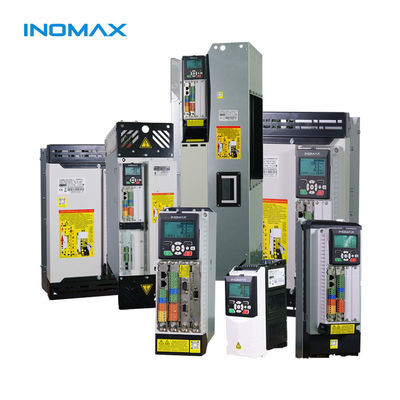

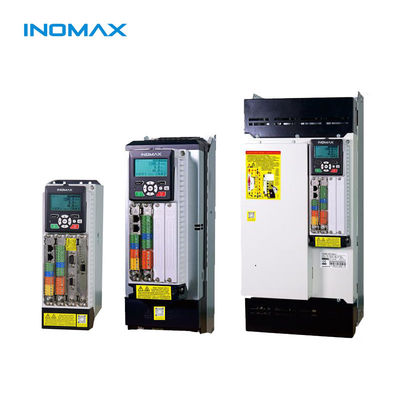

High Performance VFD Frequency Inverter with PMSM and Servo Motor Support Featuring Modbus Protocol

MOQ:	5
قیمت:	$99

Detail Information

توضیحات محصول

Detail Information

محل منبع:

چین

جریان خروجی:

بار

بسامد خروجی:

50 هرتز یا 60 هرتز

نوع:

مبدل های DC/DC

شبکه:

NFC

نوع خروجی:

مجرد

اندازه:

505*205*165 میلی متر

وزن:

10 کیلوگرم

دامنه برق:

1.5kW-250kw

ولتاژ قدرت:

220V ، 230V ، 240V ، 380V ، 400V ، 440V ، 480V ، 500V ، 520V ، 600V ، 660V ، 690V

حالت کنترل:

کنترل DTC ، کنترل بردار

نوع پروتکل:

Modbus ، Canopen ، Profibus ، Profinet ، EtherCat ، اترنت

پاسخ گشتاور:

کمتر از 5 میلی ثانیه

دقت سرعت:

کمتر از 0.5 ٪

وضوح سرعت:

0.01 هرتز

THDI ورودی:

<5 ٪

برجسته کردن:

PMSM Motor Support VFD,Servo Motor Support Frequency Inverter,Modbus Protocol Variable Frequency Drive

Servo Motor Support Frequency Inverter

Modbus Protocol Variable Frequency Drive

توضیحات محصول

ACS580 Advanced VFD Frequency Inverter with DTC Technology

High-performance frequency inverter supporting PMSM and servo motors with advanced Direct Torque Control (DTC) technology.

Product Range	ACS580 frequency inverter ABB Analog
Type	High performance DTC drive
Applications	Complex, Heavy duty, Speed control, Tension control, Position control, Lifting control, DTC, STO, Direction torque control, Safe Torque Off
Power Range	1.5kW-250kW
Voltage	220V, 230V, 240V, 380V, 400V, 440V, 480V, 500V, 520V, 600V, 660V, 690V
Control Mode	DTC control, Vector control
Protocols	Modbus, CanOpen, Profibus, Profinet, Ethercat, Ethernet
Warranty	24 months

Key Advantages of ACS580 DTC/Servo Drive

Direct torque control technology equivalent to ABB
Compatible with any sine wave AC motor including IM/PM/SynRM/Servo motors
Built-in EMC filters, DC reactor and braking units
Supports Modbus and CanOpen communication
2x torque at zero speed without sensor control
Torque response time <5ms for sensorless applications
Speed loop dynamic response accuracy: 0.7%
Speed accuracy <0.5% for sensorless applications
Advanced weak magnetic control technology
Intelligent temperature-controlled fan
Built-in logic programming function
Multiple application parameter macros

Application Experience

Metallurgy Project - Henan Yaxin Iron and Steel Plant

The converter steelmaking process requires precise control of multiple parameters. Our system provides accurate process parameter detection and high-level automatic control to ensure molten steel quality and output.

Converter Requirements

360° continuous rotation with precise positioning
Speed regulation according to process requirements
Maximum safety and reliability during operation
Flexibility to buffer shock load and torsional vibration

Solution

Implemented master/slave control for 4 rigidly connected 90kW motors, with data transmission between drives through internal communication. The host inverter adjusts speed and torque output while slave inverters follow torque response, eliminating "nodding" and "shaking" issues.

20-Roll Reversible Mill Project

Implemented regenerative drive system with 4 motors (1900kW main winding, 2x2000kW winding, 250kW unwinding) at 690VAC input. Achieved tension control accuracy <1% with maximum rolling line speed of 600m/min.

Mine Hoist Experience

Developed solution for SIEMAG TECBERG group with low harmonics and high torque at low frequency, meeting strict safety requirements for shaft hoisting systems.

Motor Test Bench Project

System features include motor durability testing, temperature rise analysis, field weakening performance evaluation, and real-time display of voltage, current, torque, speed, power, and efficiency.

Frequently Asked Questions

What is direct torque control?

Direct Torque Control (DTC) is a method that provides fast torque response without needing complex coordinate transforms. It maintains torque and flux within defined bands through hysteresis control.

What are the benefits of direct torque control?

Fast torque and flux changes by adjusting references
High efficiency with minimized switching losses
No overshoot in step response
No dynamic coordinate transforms required
No separate modulator needed
No PI current controllers or tuning required
Low audible noise due to random switching
Automatic compensation for DC voltage variations

What type of motor is compatible with inverters?

Three phase AC induction motors are compatible, preferably inverter-grade motors with 800V insulation for 200V class inverters or 1600V insulation for 400V class inverters.

What are common reasons for motor failure?

According to EPRI Power Industry Study: 41% bearing related, 37% stator related, 10% rotor related, and 12% other causes.

How do you select a VFD?

Consider motor specifications, application requirements, environmental conditions, and required features like communication protocols and control modes.
